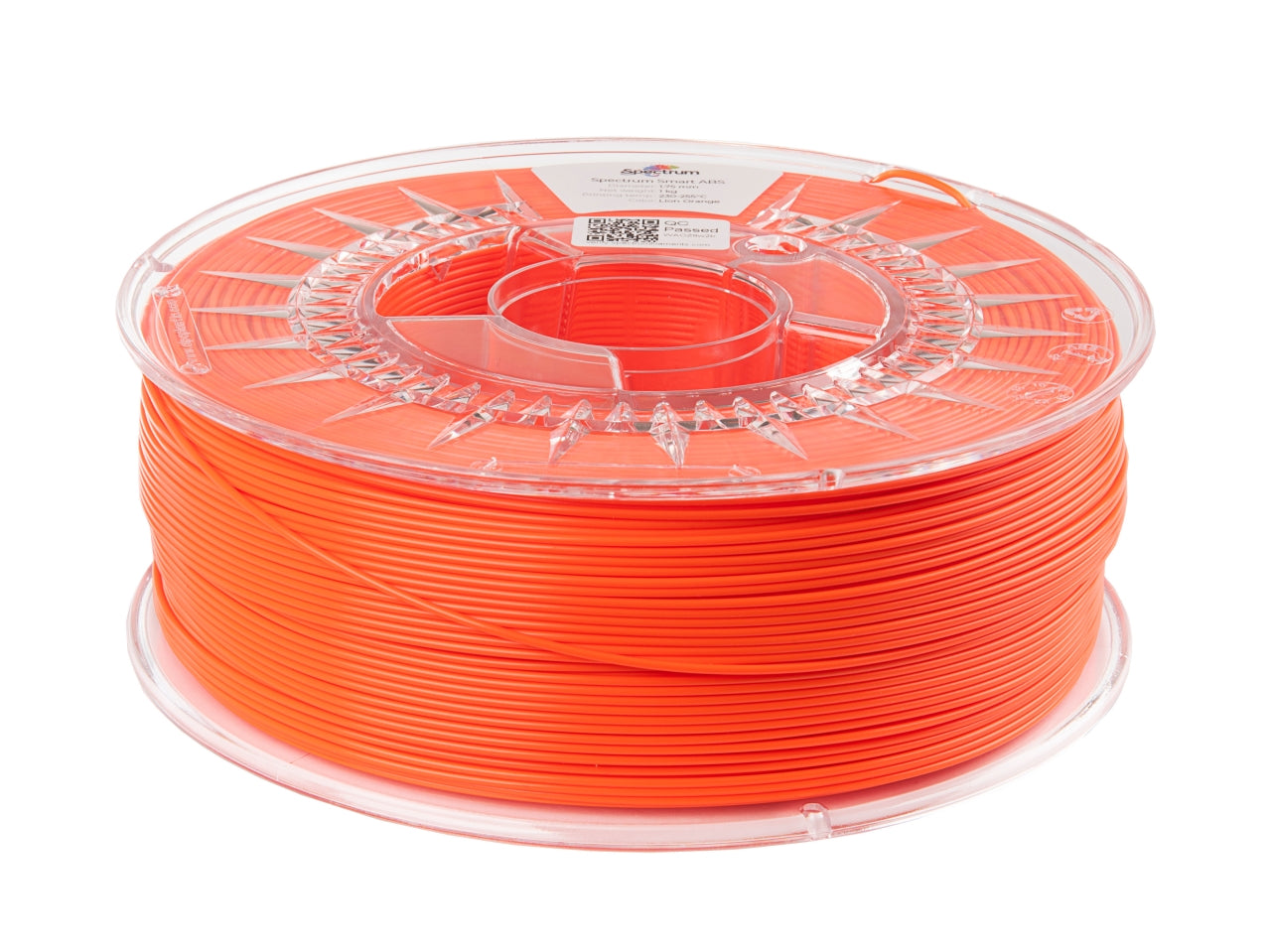

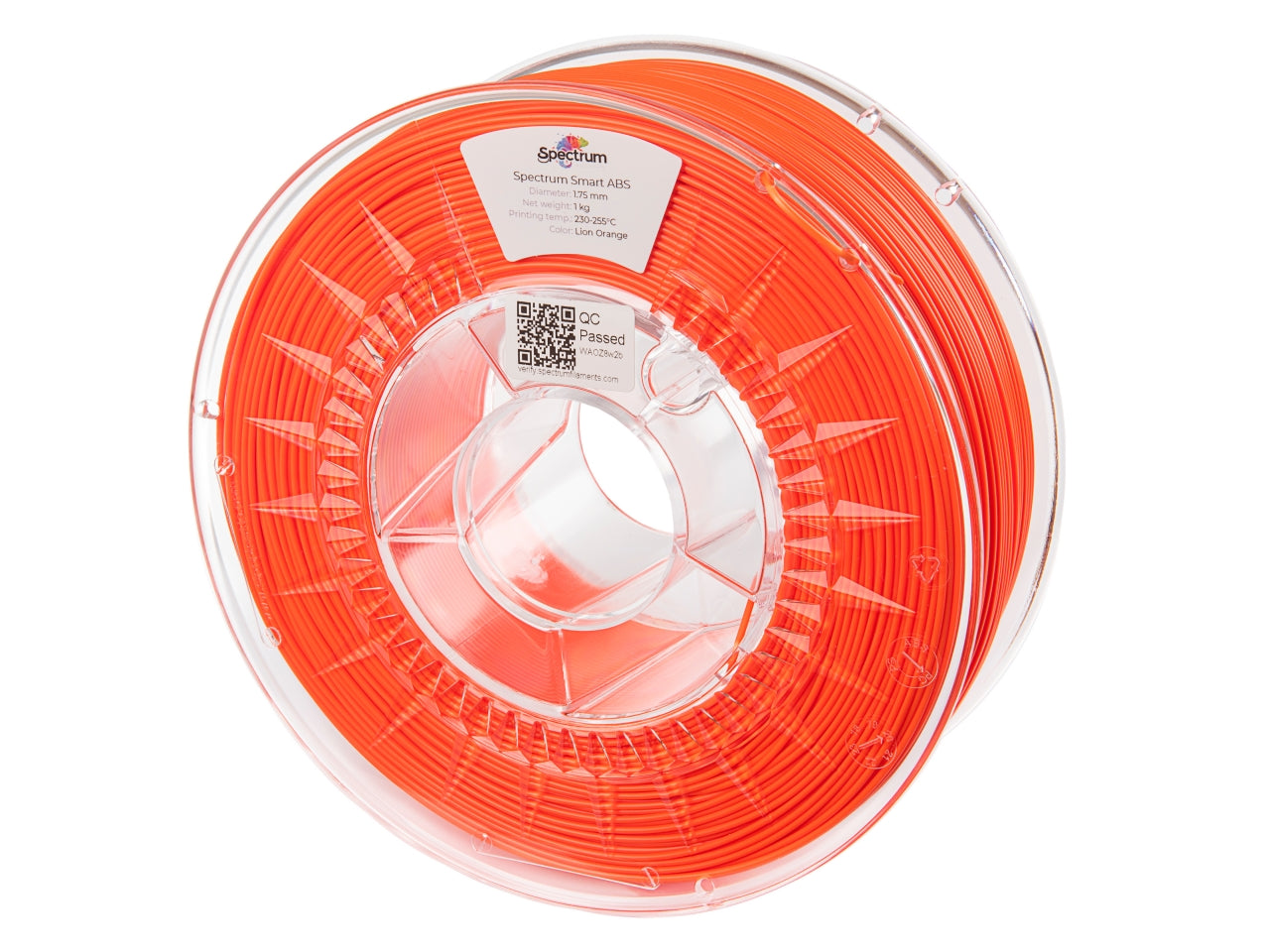

Filament Spectrum smart ABS 1.75mm LION ORANGE 1kg
Filament Spectrum smart ABS
Durable and impact resistant
The specific qualities of Spectrum Smart ABS include a high impact resistance and relatively high rigidity. “Smart” version demonstrates improved processing parameters which considerably reduce the difficulties which accompany the...
Filament Spectrum smart ABS 1.75mm LION ORANGE 1kg
Spectrum color name: Orange
Choose another$27.00 CAD
Description
Filament Spectrum smart ABS
Durable and impact resistant
The specific qualities of Spectrum Smart ABS include a high impact resistance and relatively high rigidity. “Smart” version demonstrates improved processing parameters which considerably reduce the difficulties which accompany the additive manufacturing using the standard ABS. It is essentially the lower shrinkage and reduced emission of irritant volatiles during processing. An unquestionable advantage is that the material retains its properties at temperatures down to -40°C.
Compared to standard ABS, smart ABS is characterized by:
- reduced shrinkage ratio,
- shiny surface of the printout,
- lower printing temperature,
- increased flow rate.
Key features:
- high impact resistance and rigidity while retaining a relatively high dimensional accuracy
- high gloss of external surface
- reduced warping ratio (0.5-0.7%)
- HDT - 85°C
- VICAT - 93°C
- good interlayer adhesion, especially using 3D printer with heated chamber
- low water absorption
- easy post-processing (grinding, drilling, sawing)
Applications:
- manufacturing of all kinds of enclosures, guards, protectors and other similar items subject to impacts
- possibility of mechanical treatments allows to produce items to facilitate and help conduct installations, i.e. handles, rules, gauges
- end-use parts
- industrial design
- tooling
- custom components
The possibility to conduct chemical treatments (acetone vapours) on Smart ABS provides for extremely smooth surfaces of printed items. Hence, items treated as above are used in the industrial design and broadly defined decoration-related industry.
Packaging
Filament is reeled on the neat, transparent spool. Each spool contains information on the type of material, diameter and recommended printing temperature. Filament is vacuum-packed with a moisture absorber. Whole product packed in the original, folied Spectrum Filaments packaging.
Specification
General information
Specification
Technical data
How to print?
Spool dimensions
250
44
140
52
120
Plastic
Transparent
250
44
140
52
80
Cardboard
-
500
55
200
52
240
Plastic
Transparent
750
55
200
52
240
Plastic
Transparent
1000
67
200
52
260
Plastic
Transparent
1000
67
200
52
180
Cardboard
-
2000
100
300
52
600
Plastic
Black
2000
100
300
52
420
Cardboard
-
4500
100
350
52
780
Plastic
Black
8000
167
355
36
1020
Plastic
Black
Each spool is sealed. We recommend storing filaments in a cool (15-25°C) and dry place.
Reviews
Description
Filament Spectrum smart ABS
Durable and impact resistant
The specific qualities of Spectrum Smart ABS include a high impact resistance and relatively high rigidity. “Smart” version demonstrates improved processing parameters which considerably reduce the difficulties which accompany the additive manufacturing using the standard ABS. It is essentially the lower shrinkage and reduced emission of irritant volatiles during processing. An unquestionable advantage is that the material retains its properties at temperatures down to -40°C.
Compared to standard ABS, smart ABS is characterized by:
- reduced shrinkage ratio,
- shiny surface of the printout,
- lower printing temperature,
- increased flow rate.
Key features:
- high impact resistance and rigidity while retaining a relatively high dimensional accuracy
- high gloss of external surface
- reduced warping ratio (0.5-0.7%)
- HDT - 85°C
- VICAT - 93°C
- good interlayer adhesion, especially using 3D printer with heated chamber
- low water absorption
- easy post-processing (grinding, drilling, sawing)
Applications:
- manufacturing of all kinds of enclosures, guards, protectors and other similar items subject to impacts
- possibility of mechanical treatments allows to produce items to facilitate and help conduct installations, i.e. handles, rules, gauges
- end-use parts
- industrial design
- tooling
- custom components
The possibility to conduct chemical treatments (acetone vapours) on Smart ABS provides for extremely smooth surfaces of printed items. Hence, items treated as above are used in the industrial design and broadly defined decoration-related industry.
Packaging
Filament is reeled on the neat, transparent spool. Each spool contains information on the type of material, diameter and recommended printing temperature. Filament is vacuum-packed with a moisture absorber. Whole product packed in the original, folied Spectrum Filaments packaging.
Specification
General information
Specification
Technical data
How to print?
Spool dimensions
| Content [g] | Width [mm] | Outer diameter [mm] | Inner diameter [mm] | Weight empty [g] | Material | Spool color |
|---|---|---|---|---|---|---|
| 250 | 44 | 140 | 52 | 120 | Plastic | Transparent |
| 250 | 44 | 140 | 52 | 80 | Cardboard | - |
| 500 | 55 | 200 | 52 | 240 | Plastic | Transparent |
| 750 | 55 | 200 | 52 | 240 | Plastic | Transparent |
| 1000 | 67 | 200 | 52 | 260 | Plastic | Transparent |
| 1000 | 67 | 200 | 52 | 180 | Cardboard | - |
| 2000 | 100 | 300 | 52 | 600 | Plastic | Black |
| 2000 | 100 | 300 | 52 | 420 | Cardboard | - |
| 4500 | 100 | 350 | 52 | 780 | Plastic | Black |
| 8000 | 167 | 355 | 36 | 1020 | Plastic | Black |
Each spool is sealed. We recommend storing filaments in a cool (15-25°C) and dry place.
Reviews
