Filament Spectrum PA6 GK10 1.75mm 0.75kg
Filament Spectrum PA6 GK10
High temperature polyamide filled with glass micro-spheres
Filament Spectrum PA6 GK10 is a new, high-temperature PA6-based construction material in natural colour. Filled with hollow glass spheres, it is stiffer and lighter than the polyamide the material...
Description
Filament Spectrum PA6 GK10
High temperature polyamide filled with glass micro-spheres
Filament Spectrum PA6 GK10 is a new, high-temperature PA6-based construction material in natural colour. Filled with hollow glass spheres, it is stiffer and lighter than the polyamide the material is based on. Its specific property is a low impact of moisture, high temperature resistance and good electrical insulation properties as compared to unmodified PA6 or PA66. In addition, Spectrum PA6 GK10 features a low linear shrinkage (up to 0.3-0.5%).
Spectrum PA6 GK10 has similar thermal properties as the carbon fibre (CF) version, while being an electrical insulator. The material is not as abrasive to nozzles as carbon fibre (CF) version and is much lighter than pure polyamide, so it can reduce the weight of the final print.
To attain the very attractive properties of Spectrum PA6 GK10, as regards the technical aspects, you need to follow the basic storage rules for such materials (in a dry and dark place with humidity below 15%). To obtain the best parameters of the printed object possible, it is recommended to dry the material prior to work.
Key features:
- high temperature up to 160°C for short-time operation (max. 200h)
- high temperature up to 120°C for long-time operation (20.000h)
- heat distortion temperature – HDT A 90°C (ISO 75)
- water absorption below 0.3% (23°C / 24h)
- high creep resistance
- high hardness and rigidity of the printed items
- chemical resistance to lubricants and oils
- a wide range of applications
- very robust interlayer lamination
- high impact resistance
- a relatively high resistance to thermal ageing
Applications:
- end-use parts
- tooling
- functional prototyping
- industrial modelling
- production of slide bearings, gear wheels and racks, sweep-off gears and guide rolls operated in elevated temperatures up to 120°C on a prolonged basis and up to 160°C on a short-time basis
- all types of ring and plate seals with an increased chemical and corrosion resistance
Packaging

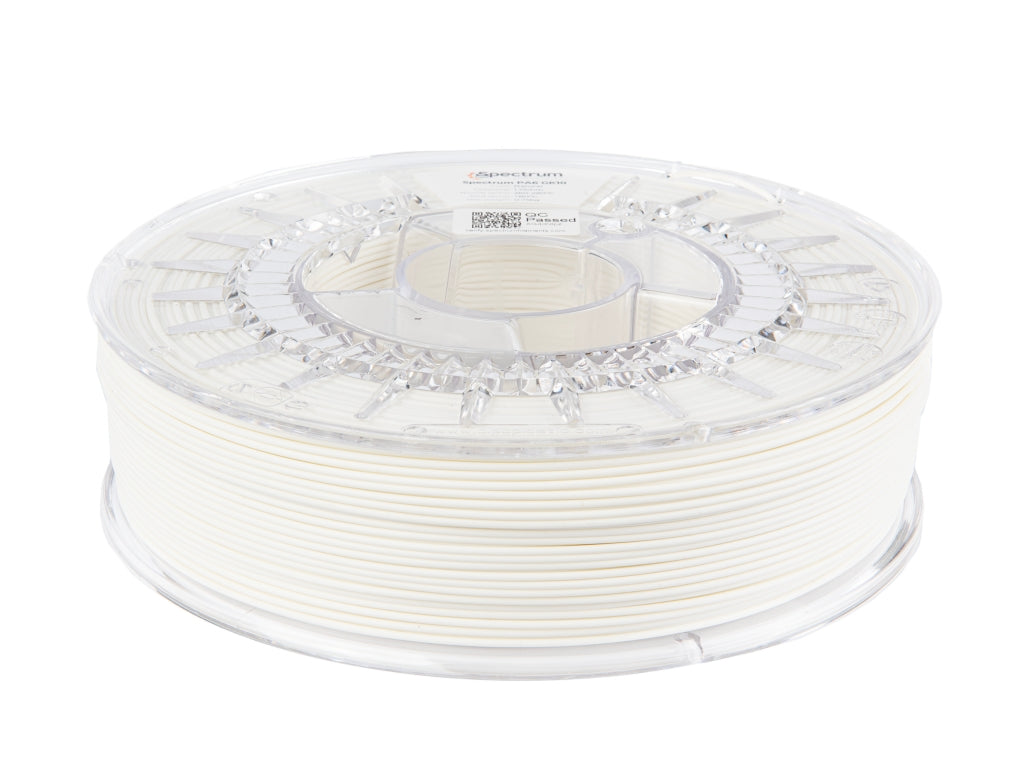

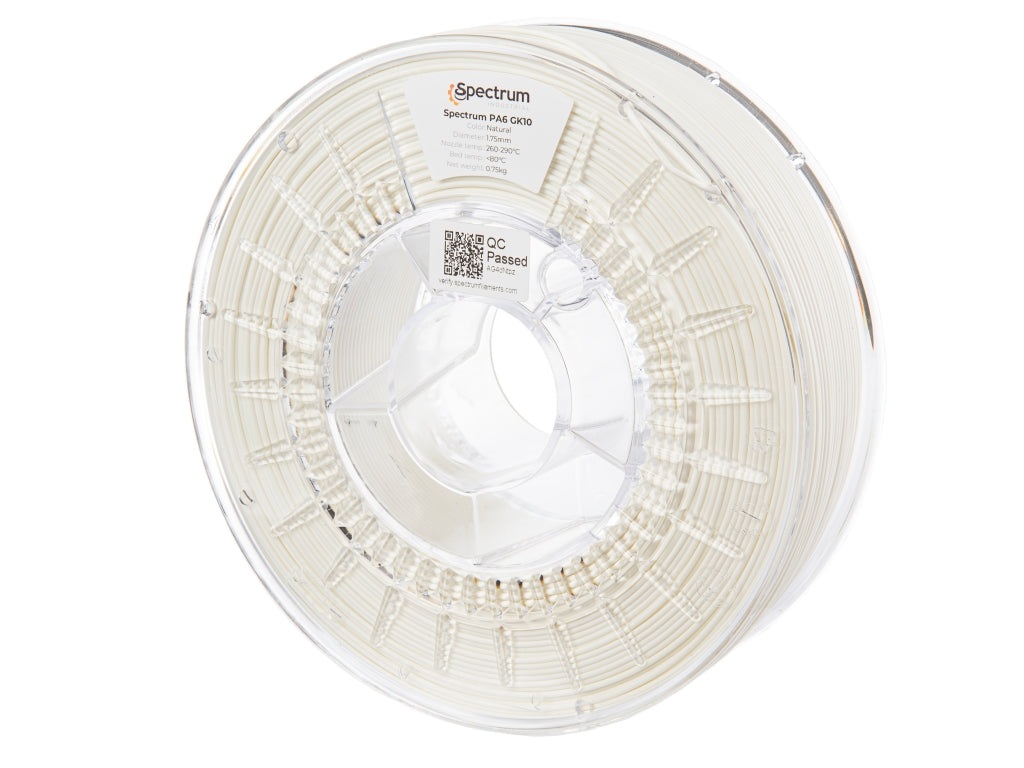

Filament wound on a transparent PC spool. The spool contains information about the type of material, diameter and recommended printing temperature. Each reel is packed in aluminium vacuum bag with ZIP lock with a silica gel inside.
Specification
General information
Specification
Technical data
How to print?
Spool dimensions
250
44
140
52
120
Plastic
Transparent
250
44
140
52
80
Cardboard
-
500
55
200
52
240
Plastic
Transparent
750
55
200
52
240
Plastic
Transparent
1000
67
200
52
260
Plastic
Transparent
1000
67
200
52
180
Cardboard
-
2000
100
300
52
600
Plastic
Black
2000
100
300
52
420
Cardboard
-
4500
100
350
52
780
Plastic
Black
8000
167
355
36
1020
Plastic
Black
Each spool is sealed. We recommend storing filaments in a cool (15-25°C) and dry place.
Reviews
Description
Filament Spectrum PA6 GK10
High temperature polyamide filled with glass micro-spheres
Filament Spectrum PA6 GK10 is a new, high-temperature PA6-based construction material in natural colour. Filled with hollow glass spheres, it is stiffer and lighter than the polyamide the material is based on. Its specific property is a low impact of moisture, high temperature resistance and good electrical insulation properties as compared to unmodified PA6 or PA66. In addition, Spectrum PA6 GK10 features a low linear shrinkage (up to 0.3-0.5%).
Spectrum PA6 GK10 has similar thermal properties as the carbon fibre (CF) version, while being an electrical insulator. The material is not as abrasive to nozzles as carbon fibre (CF) version and is much lighter than pure polyamide, so it can reduce the weight of the final print.
To attain the very attractive properties of Spectrum PA6 GK10, as regards the technical aspects, you need to follow the basic storage rules for such materials (in a dry and dark place with humidity below 15%). To obtain the best parameters of the printed object possible, it is recommended to dry the material prior to work.
Key features:
- high temperature up to 160°C for short-time operation (max. 200h)
- high temperature up to 120°C for long-time operation (20.000h)
- heat distortion temperature – HDT A 90°C (ISO 75)
- water absorption below 0.3% (23°C / 24h)
- high creep resistance
- high hardness and rigidity of the printed items
- chemical resistance to lubricants and oils
- a wide range of applications
- very robust interlayer lamination
- high impact resistance
- a relatively high resistance to thermal ageing
Applications:
- end-use parts
- tooling
- functional prototyping
- industrial modelling
- production of slide bearings, gear wheels and racks, sweep-off gears and guide rolls operated in elevated temperatures up to 120°C on a prolonged basis and up to 160°C on a short-time basis
- all types of ring and plate seals with an increased chemical and corrosion resistance
Packaging
Filament wound on a transparent PC spool. The spool contains information about the type of material, diameter and recommended printing temperature. Each reel is packed in aluminium vacuum bag with ZIP lock with a silica gel inside.
Specification
General information
Specification
Technical data
How to print?
Spool dimensions
| Content [g] | Width [mm] | Outer diameter [mm] | Inner diameter [mm] | Weight empty [g] | Material | Spool color |
|---|---|---|---|---|---|---|
| 250 | 44 | 140 | 52 | 120 | Plastic | Transparent |
| 250 | 44 | 140 | 52 | 80 | Cardboard | - |
| 500 | 55 | 200 | 52 | 240 | Plastic | Transparent |
| 750 | 55 | 200 | 52 | 240 | Plastic | Transparent |
| 1000 | 67 | 200 | 52 | 260 | Plastic | Transparent |
| 1000 | 67 | 200 | 52 | 180 | Cardboard | - |
| 2000 | 100 | 300 | 52 | 600 | Plastic | Black |
| 2000 | 100 | 300 | 52 | 420 | Cardboard | - |
| 4500 | 100 | 350 | 52 | 780 | Plastic | Black |
| 8000 | 167 | 355 | 36 | 1020 | Plastic | Black |
Each spool is sealed. We recommend storing filaments in a cool (15-25°C) and dry place.
