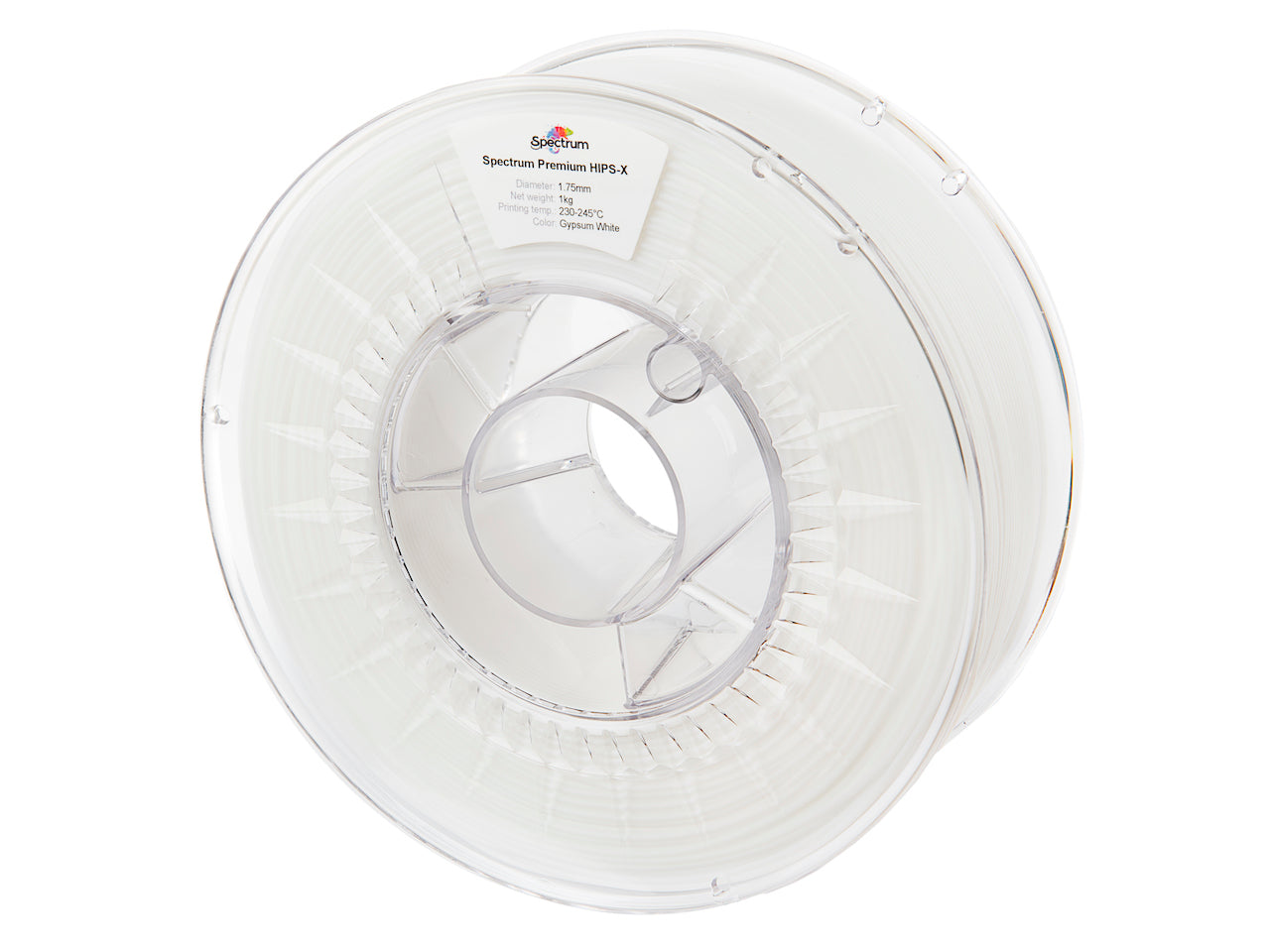

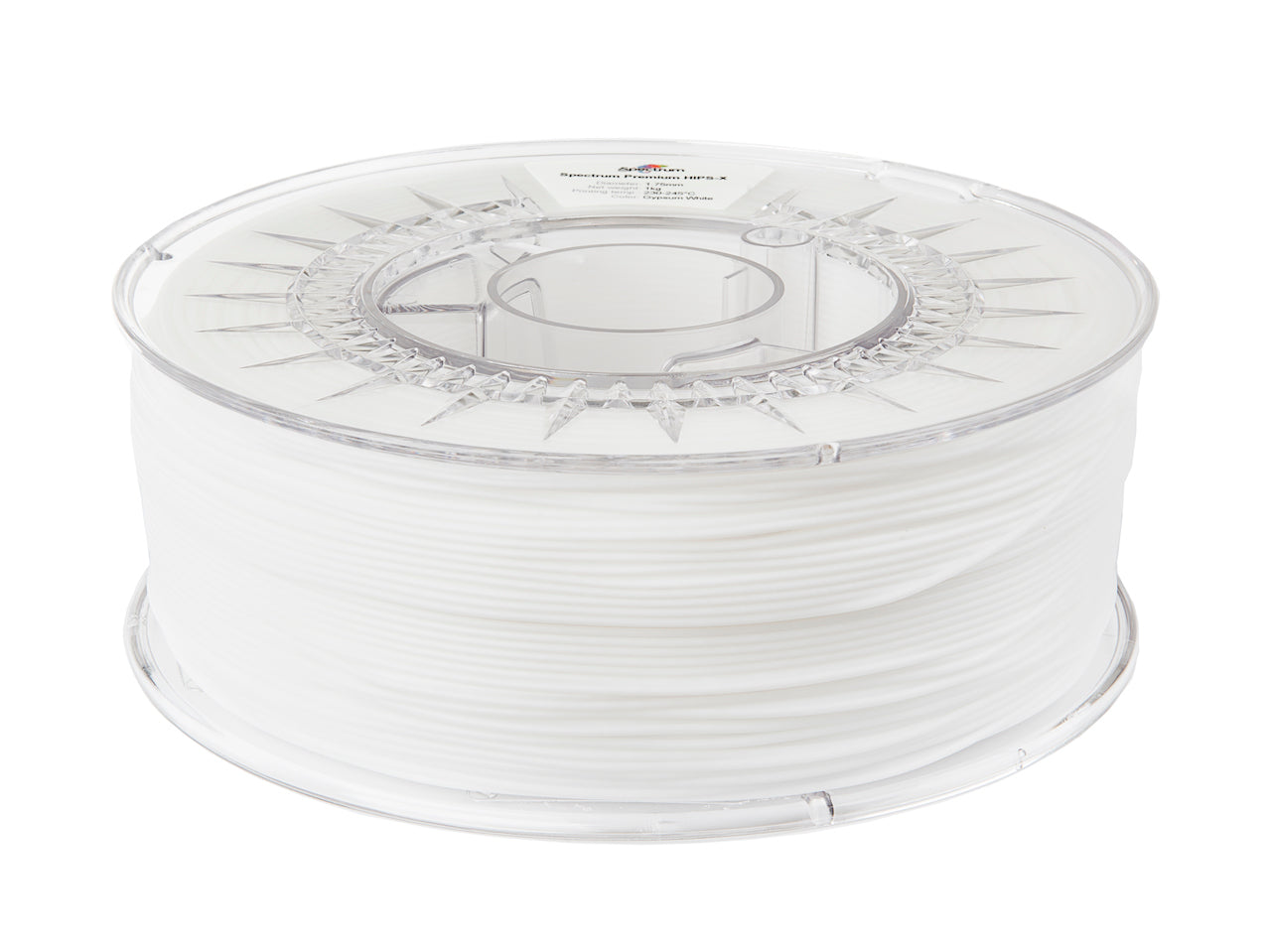

Filament Spectrum HIPS-X 1.75mm GYPSUM WHITE 1kg
Filament Spectrum HIPS-X
High impact reistance
Spectrum HIPS–X is a support material designed for additive manufacturing for FDM/FFF technology. It is usually used as support for components manufactured with ABS, where HIPS-X supports are dissolved D–Limonene upon...
Filament Spectrum HIPS-X 1.75mm GYPSUM WHITE 1kg
Spectrum color name: White
Choose another$29.00 CAD
Description
Filament Spectrum HIPS-X
High impact reistance
Spectrum HIPS–X is a support material designed for additive manufacturing for FDM/FFF technology. It is usually used as support for components manufactured with ABS, where HIPS-X supports are dissolved D–Limonene upon completion of the manufacturing process. Further, you can use Spectrum HIPS–X as a base material for manufacturing of components which require a reduced processing shrinkage as compared to ABS.
Spectrum HIPS-X shows a high impact and compression resistance. It also enables to obtain matte surfaces with a reduced layer visibility. Much like ABS, HIPS-X allows for mechanical treatments such as grinding, turning, milling etc. The low hardness of printed items makes it easy to separate material sections with sharp tools.
Key properties:
- improved aesthetic qualities with the matte surfaces of the printed items
- lower shrinkage rate than classic ABS
- possibility of mechanical treatment (drilling, turning, milling or grinding)
- thermal resistance – HDT B 88°C
- Vicat softening temperature - 96°C
- high impact resistance
- energy absorption and dissipation capabilities
- good for large prints
- light
- fully soluble in D-Limonene
- matt surface
Applications:
- support material for ABS
- industrial applications which require impact resistant components or components with a capability for partial energy dissipation
- concept and demo prototyping of designed finished and semi-finished products
- packaging
Mainly used as a support material, Spectrum HIPS–X is also designed for industrial applications which require impact resistant components or components with a capability for partial energy dissipation. Due to its low hardness, HIPS–X may be used in arts, specifically in sculpture.
Packaging
Filament is reeled on the neat, transparent spool. Each spool contains information on the type of material, diameter and recommended printing temperature. Filament is vacuum-packed with a moisture absorber. Whole product packed in the original, folied Spectrum Filaments packaging.
Specification
General information
Specification
Technical data
How to print?
Spool dimensions
250
44
140
52
120
Plastic
Transparent
250
44
140
52
80
Cardboard
-
500
55
200
52
240
Plastic
Transparent
750
55
200
52
240
Plastic
Transparent
1000
67
200
52
260
Plastic
Transparent
1000
67
200
52
180
Cardboard
-
2000
100
300
52
600
Plastic
Black
2000
100
300
52
420
Cardboard
-
4500
100
350
52
780
Plastic
Black
8000
167
355
36
1020
Plastic
Black
Each spool is sealed. We recommend storing filaments in a cool (15-25°C) and dry place.
Reviews
Description
Filament Spectrum HIPS-X
High impact reistance
Spectrum HIPS–X is a support material designed for additive manufacturing for FDM/FFF technology. It is usually used as support for components manufactured with ABS, where HIPS-X supports are dissolved D–Limonene upon completion of the manufacturing process. Further, you can use Spectrum HIPS–X as a base material for manufacturing of components which require a reduced processing shrinkage as compared to ABS.
Spectrum HIPS-X shows a high impact and compression resistance. It also enables to obtain matte surfaces with a reduced layer visibility. Much like ABS, HIPS-X allows for mechanical treatments such as grinding, turning, milling etc. The low hardness of printed items makes it easy to separate material sections with sharp tools.
Key properties:
- improved aesthetic qualities with the matte surfaces of the printed items
- lower shrinkage rate than classic ABS
- possibility of mechanical treatment (drilling, turning, milling or grinding)
- thermal resistance – HDT B 88°C
- Vicat softening temperature - 96°C
- high impact resistance
- energy absorption and dissipation capabilities
- good for large prints
- light
- fully soluble in D-Limonene
- matt surface
Applications:
- support material for ABS
- industrial applications which require impact resistant components or components with a capability for partial energy dissipation
- concept and demo prototyping of designed finished and semi-finished products
- packaging
Mainly used as a support material, Spectrum HIPS–X is also designed for industrial applications which require impact resistant components or components with a capability for partial energy dissipation. Due to its low hardness, HIPS–X may be used in arts, specifically in sculpture.
Packaging
Filament is reeled on the neat, transparent spool. Each spool contains information on the type of material, diameter and recommended printing temperature. Filament is vacuum-packed with a moisture absorber. Whole product packed in the original, folied Spectrum Filaments packaging.
Specification
General information
Specification
Technical data
How to print?
Spool dimensions
| Content [g] | Width [mm] | Outer diameter [mm] | Inner diameter [mm] | Weight empty [g] | Material | Spool color |
|---|---|---|---|---|---|---|
| 250 | 44 | 140 | 52 | 120 | Plastic | Transparent |
| 250 | 44 | 140 | 52 | 80 | Cardboard | - |
| 500 | 55 | 200 | 52 | 240 | Plastic | Transparent |
| 750 | 55 | 200 | 52 | 240 | Plastic | Transparent |
| 1000 | 67 | 200 | 52 | 260 | Plastic | Transparent |
| 1000 | 67 | 200 | 52 | 180 | Cardboard | - |
| 2000 | 100 | 300 | 52 | 600 | Plastic | Black |
| 2000 | 100 | 300 | 52 | 420 | Cardboard | - |
| 4500 | 100 | 350 | 52 | 780 | Plastic | Black |
| 8000 | 167 | 355 | 36 | 1020 | Plastic | Black |
Each spool is sealed. We recommend storing filaments in a cool (15-25°C) and dry place.
